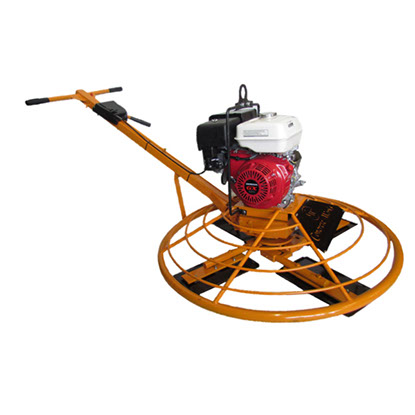

Power Float / Power Trowel
FEATURES
SPECIFICATIONS

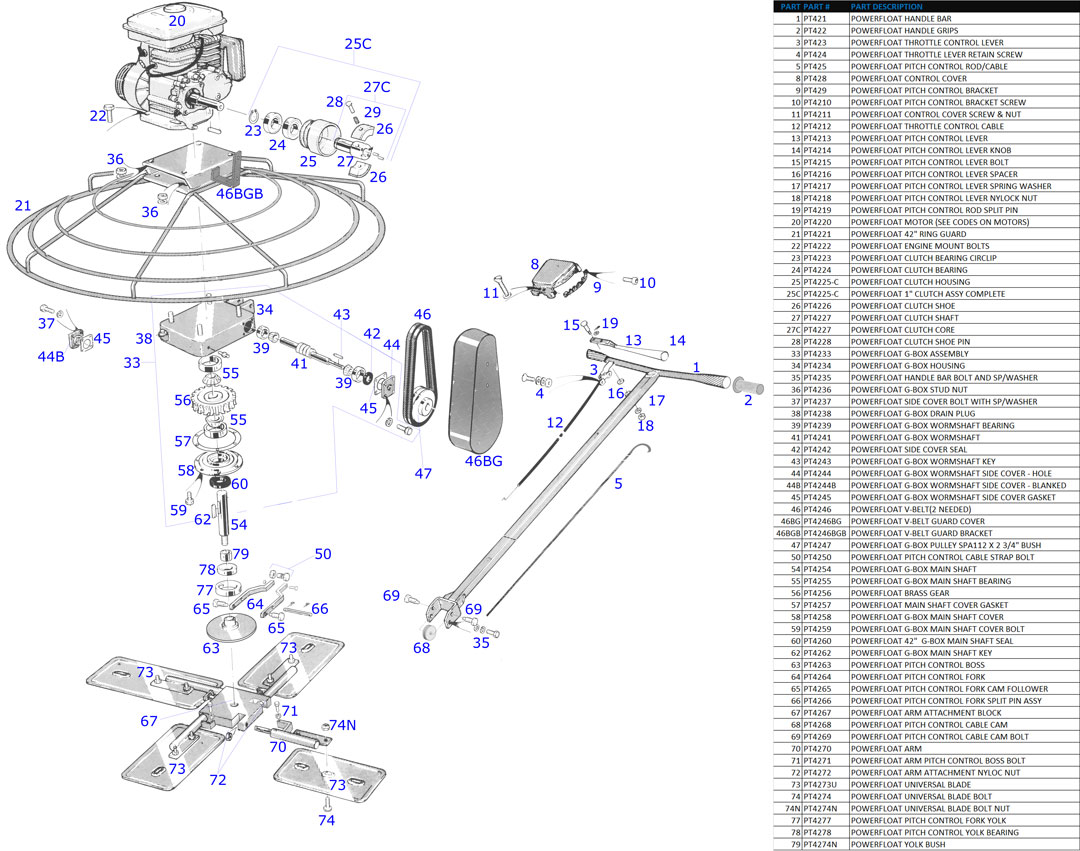

EXPLODED VIEWS
Electric Drives: 220V and 380V The power trowels come in 3 different sizes: 36" - 900mm 42" - 1050mm(4 Blade) 42" - 1050mm(6 Blade) 46" - 1150mm(4 Blade) 46" - 1150mm(6 Blade) Petrol and Diesel Drives: 36" - Available for either the 4.7 to 5.5 HP or 42" - 7.5 to 9.0 HP motor options.

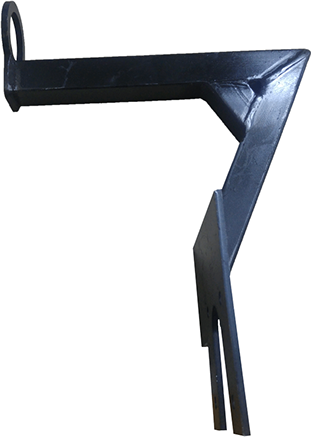

Sky hook for the power float

Emergency cut-off switch

Fit the motor you prefer. As stockists of Honda, Hoffmann, Dek, Kohler, Yamaha, CMG and Yanmar. We take pride in supplying you, your preferred solution in motor or power plant. Optimal Specifications Optimal specifications for the power plant include a HP rating of between 4.7 and 13.0 horse power to run the standard 36" float. Optimal Speed The optimal speed of the motor should run in the region or 2850 to 3000 revolutions per minute. Once exceeding the 3000 rpm range the life expectancy of the clutch, clutch bearings, gearbox, gearbox bearings as well as the blade assembly are drastically reduced.
Locally manufactured Power Float / Power Trowels Manufactured to exacting European standards with robust tough built frames. Fitted with the motor or power plant of your choice. Supplied with heavy duty clutch and blade attachment block. Please note that our parts are locally manufactured and should fit most of the small plant equipment supplied by Concrete Works and most of the major leading retailers across Souther Africa. Our products are manufactured from locally sourced EN8 and EN9 material and steel. Heavy Duty Clutch drive system Our heavy duty clutches are not only great for our power floats but also great for go-carts, lawnmowers, conveyors and many other power operated machinery. With various shaft and belt size options, give us a call for a customized quote for your specific needs or requirements. We supply a range of blades and smoothing discs that attach directly onto the float machines or the blades on the float machines. We also sell a universal blade that first most standard floats supplied by the South African market.
CONCRETEWORKS

Backed by a full range of spares and warranty period

CONTACT NUMBERS

TRADING HOURS

PHYSICAL ADDRESS

QUICK LINKS

011 835 1902

086 567 0902

concreteworks@telkomsa.net

Mon - Thu : 07:00 - 16:30

Friday : 07:00 - 15:30

Sat - Sun: Closed

4 4th Street, Booysens Reserve

Corner Platinum Road & 4th Street

Exploded Views
