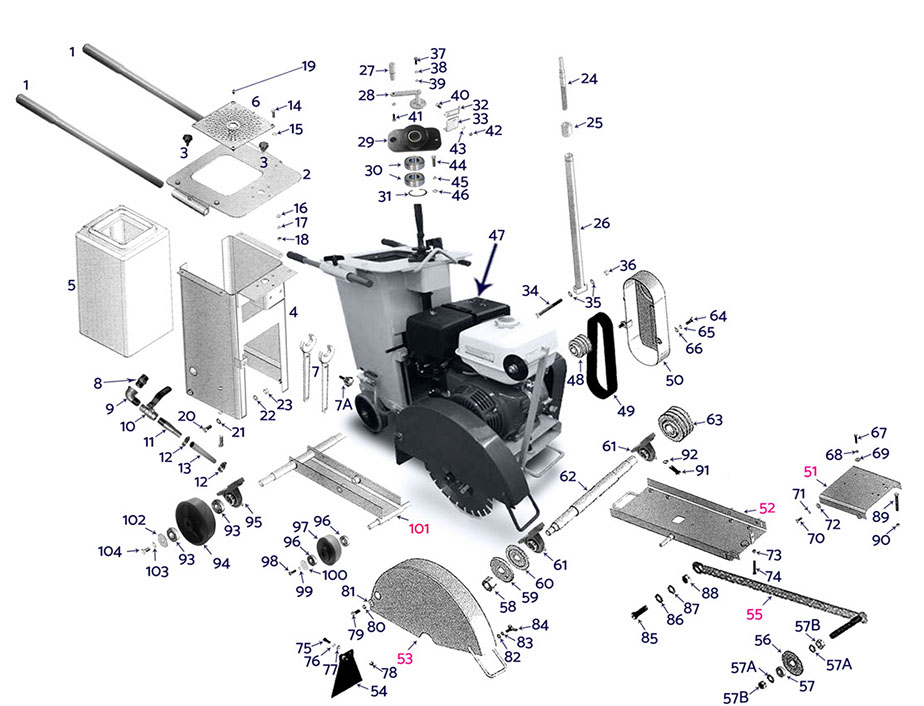

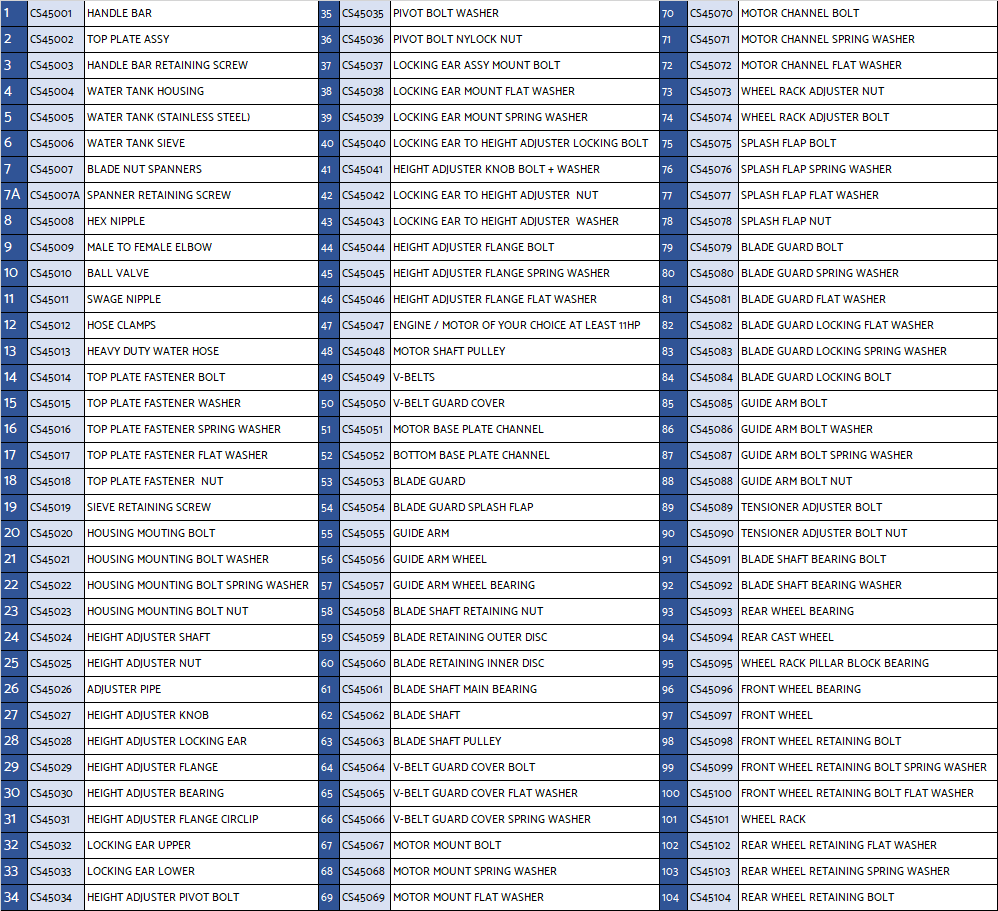

EXPLODED VIEW

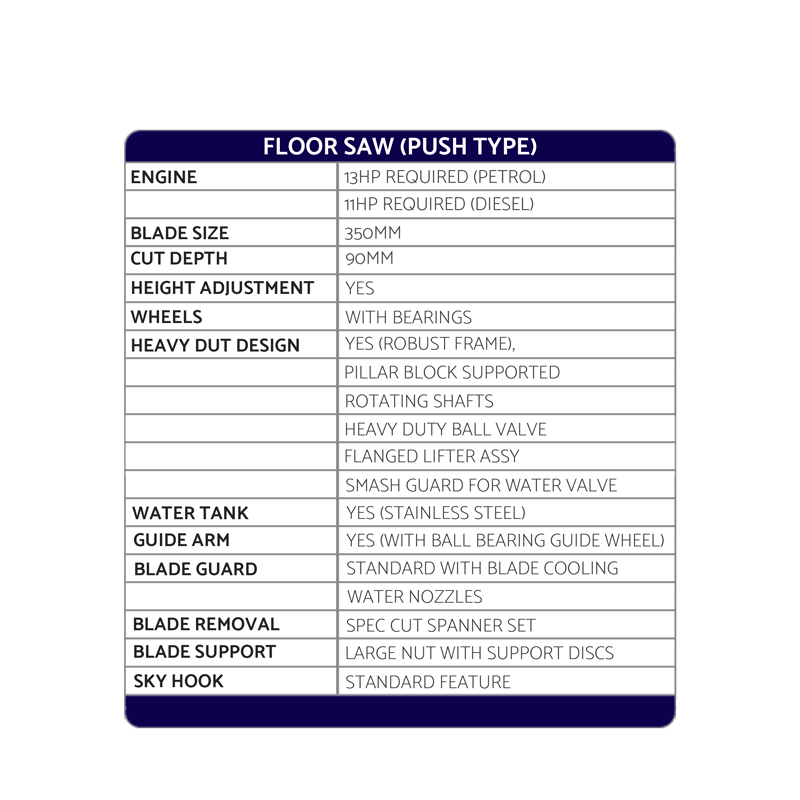

SPECIFICATIONS

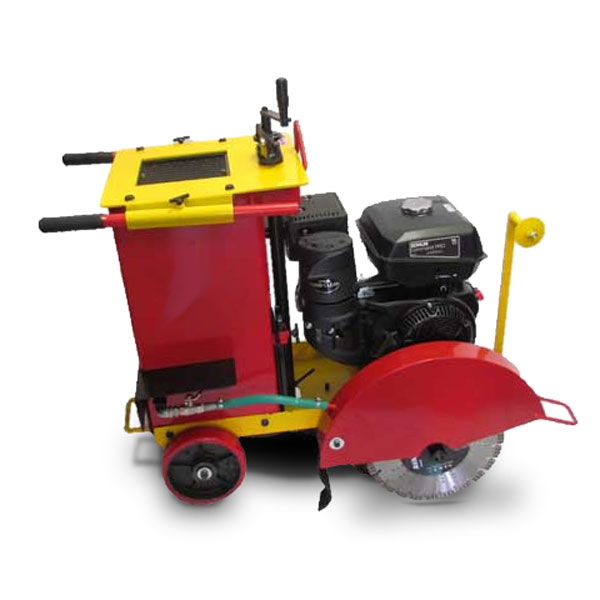

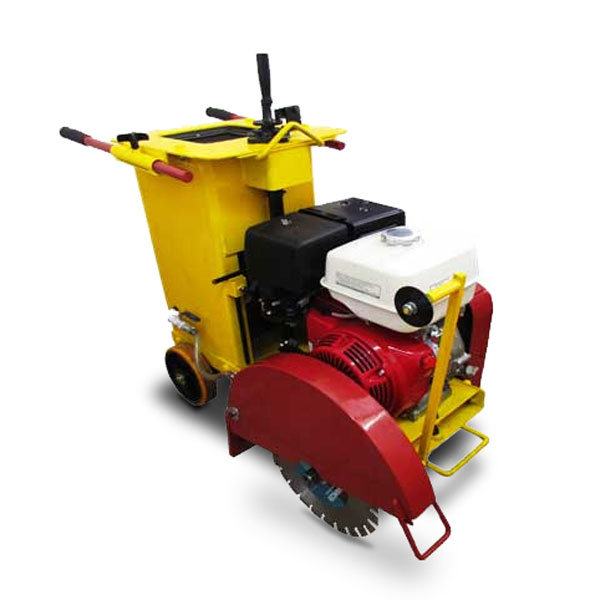

Floor Saw





Manufactured to exacting European standards with robust tough built frames. Fitted with the motor or power plant of your choice.



Please note that our parts are locally manufactured and should fit most of the small plant equipment supplied by Concrete Works and most of the major leading retailers across Southern Africa.



Our products are manufactured from locally sourced EN8 and EN9 material and steel.

lifting hook for cranes

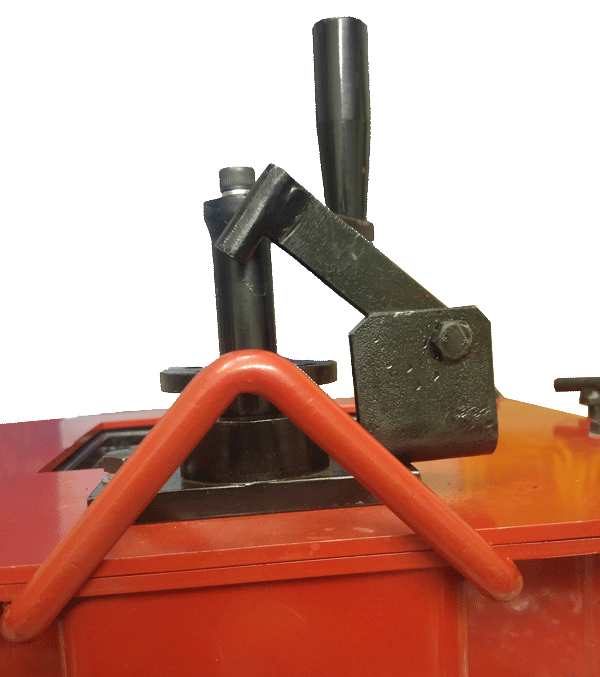

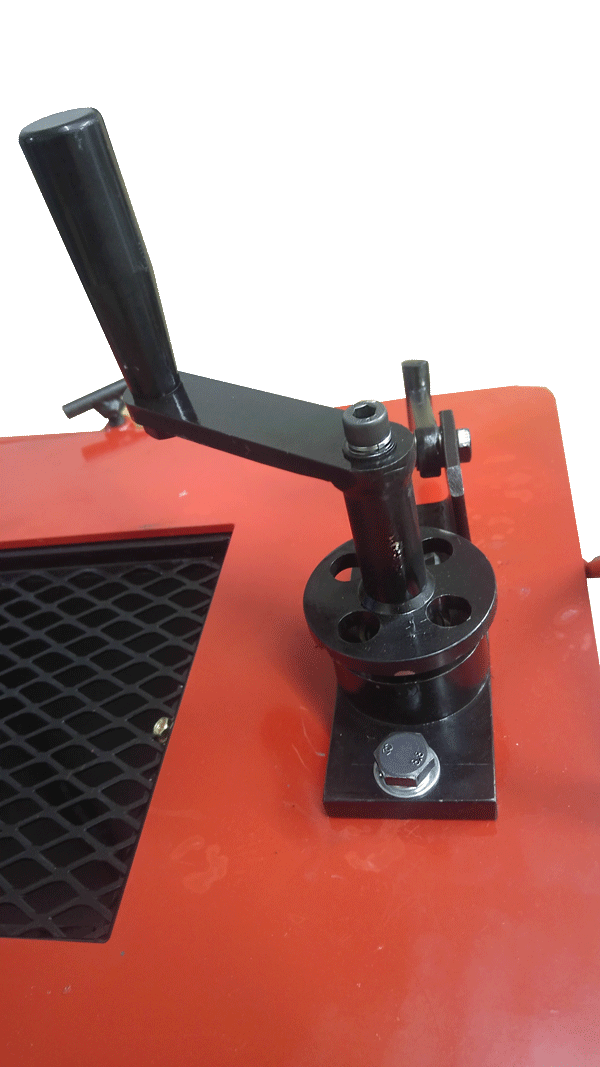

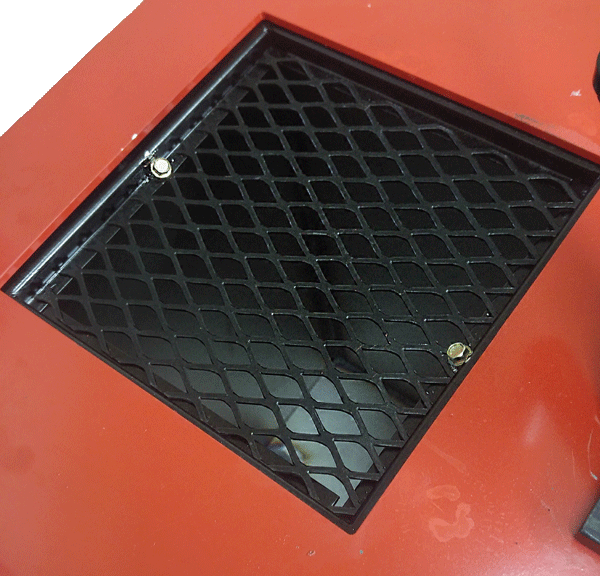

locking mechanism for lifter assy stainless steel tank

Fit the motor you prefer.



As stockists of Honda, Hoffmann, Dek, Kohler, Yamaha, CMG and Yanmar. We take pride in supplying you, your preferred solution

in motor or power plant.



Optimal Specifications



Optimal specifications for the power plant include a HP rating of between 11.0 to 18.0 horse power to run the standard floor saw.



Optimal Speed



The optimal speed of the motor should run in the region of 2850 to 3000 revolutions per minute. Once exceeding the 3000 rpm range the life expectancy of the blade shaft assembly and pillar block bearings are drastically reduced.
